Penwood 760

PVC PROFILE SYSTEM

Profile width 70 mm
Number of chambers 5
Profile class B Class (TS EN 12608-1)
Seal Type External / Internal double seal system
Seal Type and Color TPE - Grey / Black
Glass thickness (mm) 4, 20, 24, 30, 32mm
The thermal insulation Uf : 1,26 W/m²K

Ant. Grey ST 508

Ant. Grey AS 508

Dark Black AS 520

Swamp Oak ST 503

Grey ST 507

Natural Oak HR 570

Grey Sand AS 509

Grey Sand ST 509

Mahogany ST 504

Silver Teak SB 513

Ant. Grey ST 516

Silver Brush SB 518

White ST 517

Dark Black ST 520

P.Golden Oak ST 540

P.Dark Oak ST 541

Moss Green ST 521

Lake Blue ST 522

PENWOOD 760

just for your home

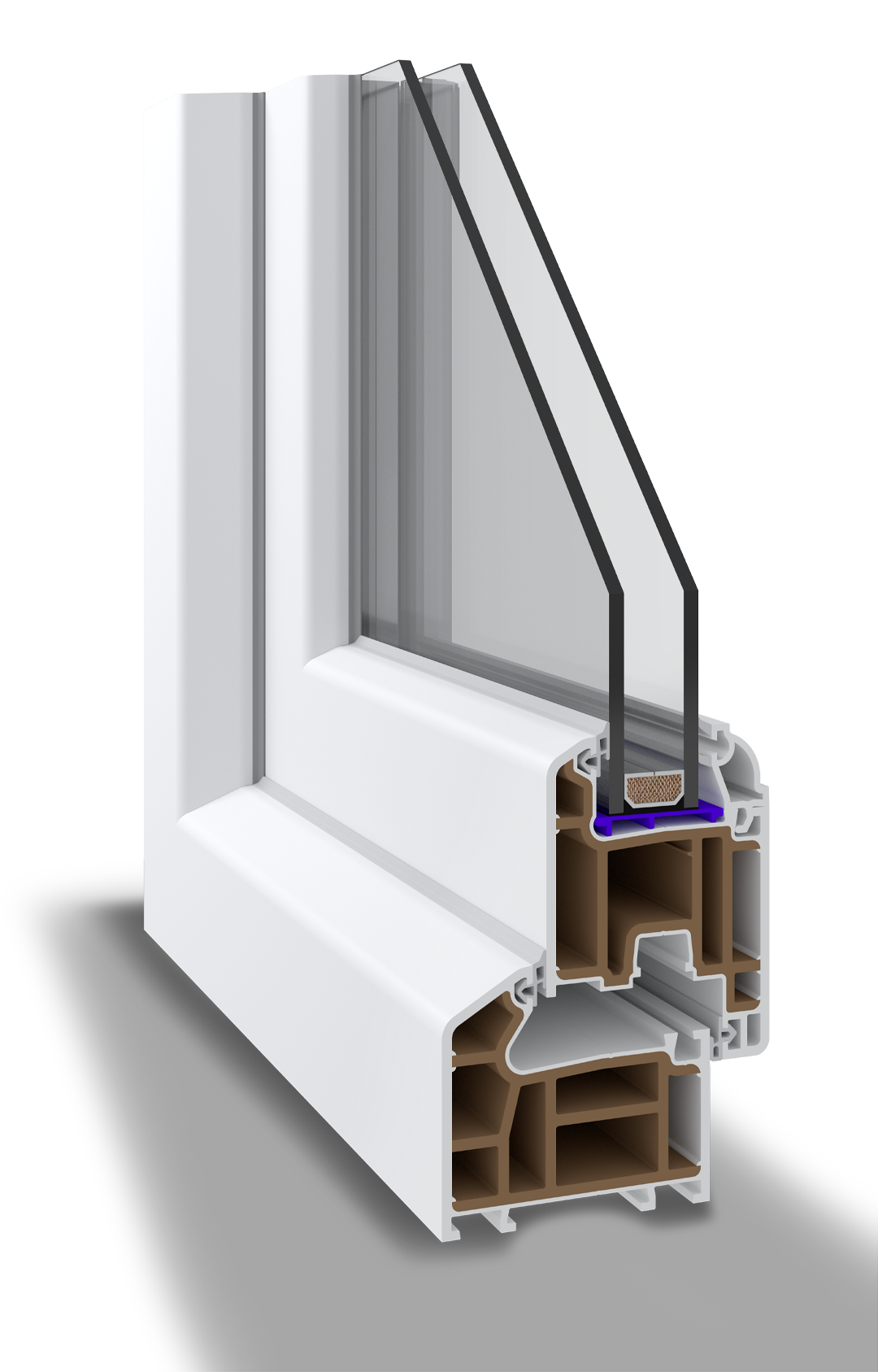

70 mm frame and 60 mm sash profile system. Because of the composite profile extruded together, no need for extra metal reinforcement inside.

No need for reinforcement cutting screwing unit and workman.

Compared with metal reinforcement system profile Penwood systems have %30 more advantages with max heat-sound and water insulation.

Just cut and weld. You do not need Metal Reinforcement and extra stock area for Metal Reinforcement.

Possibility to install single 4-6 mm or double glazing 20, 24, 28, 32 mm with different thickness of glazing bead.

It has water drainage channel, it can be directly drilled after cutting.

Color range for laminated products.

It’s quality is accredited by national and international certificates.
