W 632 / W 630 Series

PVC PROFILE SYSTEM

Profile width 60 mm
Number of chambers 3
Profile class W 632 B Class (TS EN 12608-1)
W 630 C Class (TS EN 12608-1)
Seal Type External / Internal double seal system
Seal Type and Color TPE - Gray / Black
Glass thickness (mm) 4, 20, 24, 30, 32 mm
The thermal insulation 1,58 W/m²K

Ant. Grey ST 508

Ant. Grey AS 508

Dark Black AS 520

Swamp Oak ST 503

Grey ST 507

Natural Oak HR 570

Grey Sand AS 509

Grey Sand ST 509

Mahogany ST 504

Silver Teak SB 513

Ant. Grey ST 516

Silver Brush SB 518

White ST 517

Dark Black ST 520

P.Golden Oak ST 540

P.Dark Oak ST 541

W 632 / W 630

just for your home

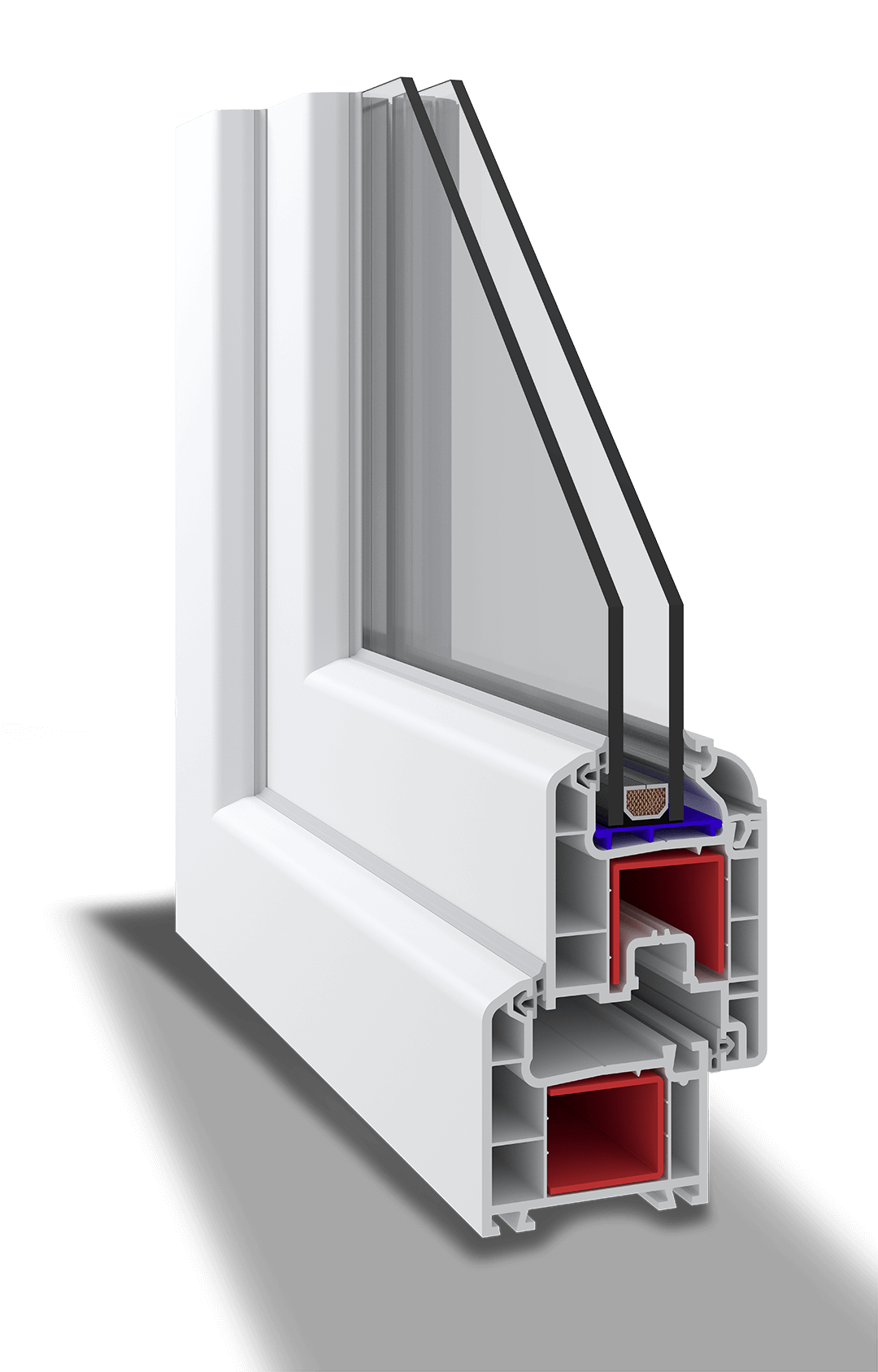

The main profile has 60 mm width.

Because of the elastic grey and black seal which does not leave any stain on profiles will be provided maximum air, water, dust and sound isolation.

Due to the 3 chambers profiles, it has maximum performance for thermal, sound and water isolation.

It is a series of profiles with very special design that provides maximum wind resistance on high rise buildings.

Excluding normal sash profile there is also chance to have a choice for offset type sash profile.

In addition to white profile a different laminated color range is available.

4-5 mm single glazing application of 20, 24, 30, 32 mm glazing beads give us alternatives of using double, triple glazing and panels.

It provides the visual integrity in the inner surface and the frame-wall connections due to integrated frame with sill profile.
